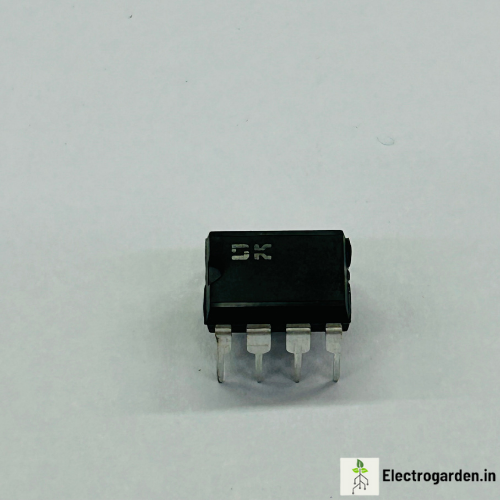

DK 1203 8PIN DIP IC

Product Description:

• Model: DK 1203 IC
• Package Type: DIP 8 PIN
• Input Voltage Range: 85V to 265V
• Integrated 700V Power MOSFET: Yes
• Self-Powered Circuit: No need for auxiliary winding power supply
• Startup Circuit: Integrated
• PWM Control: Current mode
• Working Voltage Range: 4V to 6V
• Switching Frequency: 65kHz
• Light Load Mode: Automatically enters burst mode
• Protection Features: Over-temperature, over-current, over-voltage, and overload
• Standby Power Consumption: < 0.3W
• Applications: AC/DC power adapters, DVD/VCD power supplies, air conditioner power supplies, induction cooker power supplies, LED power supplies, set-top box power supplies

Features:

• Wide Input Voltage Range: 85V to 265V
• Built-in High Voltage Power MOSFET: 700V
• Self-Powered Technology: Eliminates need for auxiliary power supply
• Integrated Startup Circuit: Ensures reliable operation
• Current Mode PWM Control: For stable output
• Protection Mechanisms: Includes over-temperature, over-current, over-voltage, and overload protection
• Energy Efficient: Low standby power consumption of < 0.3W
• High Switching Frequency: 65kHz for efficient power conversion
• Compact DIP 8 PIN Package: Easy to integrate into various applications

Applications:

• AC/DC Power Adapters
• DVD/VCD Power Supplies
• Air Conditioner Power Supplies
• Induction Cooker Power Supplies
• LED Power Supplies
• Set-Top Box Power Supplies

Datasheet Highlights:

• Voltage Rating: 85V to 265V
• Power Range: Up to 18W
• Standby Power Consumption: < 0.3W
• Operating Temperature: -20°C to +125°C
• Storage Temperature: -55°C to +150°C

The DK 1203 IC offers robust performance and reliable protection features, making it ideal for a wide range of power supply applications. Its compact DIP 8 PIN package ensures easy integration into existing systems. For more details, refer to the complete datasheet.
